Essential Guide to Checking Non-Return Valves: Ensure Optimal Performance and Prevent Failures

Non-return valves (NRVs), also known as check valves, are the silent guardians of fluid systems. Their critical role is simple yet vital: allowing flow in one direction and automatically preventing reverse flow (backflow). This protects pumps, compressors, and other components from damage, contamination, and pressure surges. Like any mechanical component, NRVs can wear out or fail. Knowing how to properly check non return valves is essential for maintaining system integrity, efficiency, and preventing costly downtime or damage.

Understanding Non-Return Valves: Function and Importance

Non-return valves operate passively, using the flow pressure of the fluid itself to open. When flow stops or attempts to reverse, the valve mechanism (a disc, ball, or diaphragm) closes under gravity, spring force, or backpressure. This fundamental action:

• Prevents Backflow: Stops contaminated fluid from flowing back into clean sources or damaging upstream equipment like pumps.
• Protects Equipment: Shields pumps and compressors from reverse rotation and water hammer.
• Maintains Pressure: Keeps lines primed and prevents pressure loss in specific system sections.
• Ensures Process Integrity: Crucial in applications where reverse flow could disrupt chemical processes or cause safety hazards.

Common Types of Non-Return Valves

Different designs suit different applications. Knowing your valve type is key when you check non return valve operation:

1. Swing Check Valve: Features a hinged disc that swings open with flow and swings shut against the seat when flow stops. Common in larger pipe sizes, low-velocity applications. Requires space for full disc swing.
2. Lift Check Valve: Utilizes a piston or ball that lifts vertically off its seat with flow pressure and drops back down when flow ceases. Suitable for high-pressure systems and smaller lines. Often includes a spring for faster closing.
3. Wafer Check Valve: Compact design installed between flanges. Uses a dual-disc or single-disc mechanism. Space-saving but may have higher pressure drop. Common in HVAC and water systems.
4. Ball Check Valve: Employs a free-moving ball that seats against an orifice. Simple, effective for smaller lines and viscous fluids. Prone to wear with gritty fluids.
5. Diaphragm Check Valve: Uses a flexible diaphragm that deflects with flow and seals against backflow. Excellent for preventing drip and handling slurries or aggressive fluids.

Signs of Non-Return Valve Malfunction

Don’t wait for a complete failure. Watch for these red flags indicating it’s time to inspect check valve performance:

• Water Hammer (Hydraulic Shock): Loud banging or knocking noises in pipes indicate the valve isn’t closing fast enough, allowing reverse momentum to build before slamming shut.
• Reverse Flow (Backflow): The most critical failure. Contamination in clean lines, pumps running backwards, or unexpected pressure changes downstream.
• Reduced Flow Rate: A partially stuck open or obstructed valve creates excessive resistance. A stuck-closed valve blocks flow entirely.
• Excessive Vibration: Can signal a fluttering disc failing to seat properly or internal damage.
• External Leakage: Seals or body damage allowing fluid to escape externally.
• Internal Leakage (Passing): Audible dripping or measurable flow continuing when the valve should be fully closed. Often indicates worn seats or debris.
• Visible Damage/Corrosion: Physical signs on the valve body or flanges.

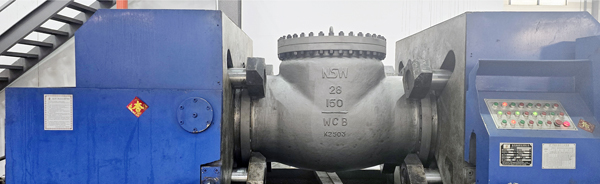

Step-by-Step Guide to Checking Non-Return Valves

Here’s a systematic approach to check non return valve functionality:

1. Preparation & Safety

* Isolate the valve section using upstream and downstream shut-off valves.
* Safely depressurize the line and drain relevant sections.
* Allow the system to cool if handling hot fluids.
* Follow Lockout/Tagout (LOTO) procedures.
* Wear appropriate PPE (gloves, eye protection).

2. Visual Inspection

* Examine the valve exterior for corrosion, leaks, physical damage, or loose bolts.
* If possible, inspect the interior (may require disassembly or using a borescope):
* Look for debris, scale, or foreign objects obstructing the disc/ball or seat.
* Check for wear, pitting, or scoring on the sealing surfaces (disc and seat).
* Inspect hinges (swing type), springs (lift/ball type), or diaphragms for damage or fatigue.
* Look for signs of corrosion or erosion.

3. Manual Operation Check (If Applicable)

* For valves with a manual lever or test mechanism, carefully operate it to feel for smooth movement and ensure the disc returns fully to the seat without binding.

4. Flow Direction Test (Simulated)

* Partial System Pressurization: Carefully open the upstream isolation valve slightly. Observe the downstream side (if accessible safely). You should feel/hear flow moving through the valve. No flow suggests the valve is stuck closed. Close the upstream valve.
* Attempt Reverse Flow Simulation: Carefully open the downstream isolation valve slightly while upstream remains closed (or apply air pressure downstream if safe and feasible). There should be NO flow past the NRV back towards the upstream side. Any flow indicates internal leakage (failed seat/disc).

H3: 5. Listen & Feel

* During normal system operation (after checks), listen for unusual noises like chattering (rapid opening/closing) or banging (water hammer) near the valve location. Feel for excessive vibration.

Tools and Equipment Needed for Inspection

Having the right tools makes checking non return valves more effective:

• Basic Hand Tools: Wrenches, screwdrivers (for access covers/manual testers).
• Flashlight or Work Light.
• Borescope/Inspection Camera (for internal view without full disassembly).
• Pressure Gauge (upstream/downstream – optional for precise pressure drop measurement).
• Ultrasonic Leak Detector (can help pinpoint internal passing sounds).
• Stethoscope (mechanics type – to isolate valve noises).
• PPE: Safety glasses, gloves, hearing protection (if testing noisy systems).
• Cleaning Tools: Wire brushes, lint-free rags, approved cleaning solvents.

Maintenance Tips for Non-Return Valves

Proactive maintenance extends valve life and reduces failures:

• Regular Inspection Schedule: Integrate NRV checks into your overall preventative maintenance program. Frequency depends on criticality, fluid type, and operating conditions (e.g., quarterly, annually).
• Keep It Clean: Ensure systems have adequate filtration upstream to prevent debris from fouling the valve mechanism. Flush lines periodically if prone to scaling or sediment.
• Lubrication (If Applicable): Follow manufacturer guidelines. Some external stems or linkages might need lubrication; internal components usually rely on system fluid.
• Correct Installation: Ensure the valve is installed in the correct orientation (flow arrow direction) and with adequate straight pipe upstream/downstream as per specs.
• Record Keeping: Document inspection findings, maintenance actions, and replacements.

Troubleshooting Common Non-Return Valve Issues

• Valve Stuck Open: Caused by debris jamming, worn/corroded hinge pins, or damaged springs. Solution: Clean thoroughly, inspect/replace damaged internals.
• Valve Stuck Closed: Debris under disc, corrosion binding mechanism, or damaged spring (in spring-assisted types). Solution: Clean, free mechanism, replace parts.
• Slow Closing (Causing Water Hammer): Weak or broken spring, excessive wear, or heavy disc (swing type) in vertical downflow. Solution: Replace spring, inspect/replace disc assembly, consider a faster-closing type (e.g., spring-loaded lift/wafer).
• Internal Leakage (Passing): Worn/damaged seat or disc, debris preventing full closure, or warped components. Solution: Clean, lap seats (if possible), replace worn parts or the entire valve.
• Excessive Noise/Chattering: Often caused by low flow velocity not holding the disc steadily open. Solution: Ensure valve is sized correctly for minimum flow rates; consider a different valve type designed for low flow stability.
• External Leaks: Damaged body, gasket failure, or loose bolts. Solution: Tighten bolts (to spec), replace gasket, repair/replace valve body.

The Role of Non-Return Valves in System Efficiency

A properly functioning NRV is more than just a backflow preventer; it’s an efficiency component:

• Reduces Energy Waste: Prevents pumps from working against reverse flow, saving energy.
• Minimizes Water Hammer Damage: Protects pipes, fittings, and equipment from destructive pressure surges, reducing repair costs and downtime.
• Maintains Optimal Flow: Ensures fluid moves where intended without restriction (when clean and functional) or unintended reversal.
• Prevents Contamination Costs: Avoids expensive cleanup, product loss, or safety incidents caused by backflow contamination.

When to Seek Professional Help

While basic checks are DIY-friendly, know when to call a professional:

• High-Pressure/Critical Systems: Valves in steam, gas, hazardous chemical, or high-pressure water systems require specialized expertise.
• Complex Disassembly/Reassembly: If you lack the tools, skills, or confidence to safely dismantle and rebuild the valve correctly.
• Welded Connections: Requires certified welders.
• Persistent Problems: If issues recur after your inspection and basic cleaning/maintenance.
• Lack of Isolation Capability: If safe isolation for inspection isn’t possible within your system setup.
• Specialized Testing: Requirements for precise flow testing or certification.

Conclusion: Ensuring Longevity and Reliability of Non-Return Valves

Non-return valves are fundamental safeguards in countless fluid systems. Neglecting them risks costly failures, energy waste, contamination, and equipment damage. By understanding their function, recognizing signs of trouble, and implementing a regular schedule to check non return valves, you proactively safeguard your operations.

Follow the step-by-step inspection guide, perform basic maintenance, and don’t hesitate to seek professional help for complex systems or persistent issues. Investing time in checking non return valves pays dividends through enhanced system reliability, efficiency, safety, and longevity. Make valve inspection a cornerstone of your preventative maintenance strategy.
