In upstream oilfield production, sour gas processing, and high‑pressure transmission pipelines, exposure to wet hydrogen sulfide (H₂S) is among the most severe service conditions in the energy industry. The combination of H₂S, chlorides, and elevated temperatures can trigger Sulfide Stress Cracking (SSC), Hydrogen‑Induced Cracking (HIC), and Stress Corrosion Cracking (SCC) — any of which may lead to catastrophic valve failure, hazardous fluid release, and safety incidents.
To mitigate these risks, international operators and EPC contractors mandate strict compliance with NACE MR0175 / ISO 15156 (Petroleum and natural gas industries — Materials for use in H₂S‑containing environments in oil and gas production). This guide outlines the material selection framework, valve design features, testing protocols, and sourcing strategy for NACE MR0175 sour gas ball valves in demanding oil & gas applications.
1. Why NACE MR0175 / ISO 15156 Compliance Matters for Sour Service
NACE MR0175 defines the acceptable metallic materials, heat treatment conditions, and hardness limits for equipment exposed to wet H₂S. The standard is performance‑based and categorically prohibits:
- Carbon steels with hardness > 22 HRC for pressure‑containing parts.
- Use of certain corrosion‑resistant alloys (CRAs) outside their specified p H₂S / temperature boundaries.
- Non‑tested weld overlays or repair welds without qualified procedures.
Key Principle: When wet H₂S contacts carbon steel, the corrosion reaction generates atomic hydrogen. These atoms diffuse into the steel lattice. If the material exceeds the hardness threshold or contains residual tensile stresses, micro‑cracks nucleate and propagate—often leading to sudden, brittle fracture with no visible warning.
2. Material Selection Matrix — Matching Alloys to Sour Service Severity
The correct body and trim materials depend on partial pressure of H₂S (p H₂S), operating temperature, pH, chloride concentration, and elemental sulfur presence. Use the table below as a first‑order engineering guide:
| Service Severity | Typical p H₂S (bar) | Temp. Range | Recommended Body Material | Trim / Wetted Surfaces | NACE MR0175 Clause |
|---|---|---|---|---|---|
| Mild / Low H₂S | < 0.05 | -29 to 60°C | ASTM A105N, A350 LF2 Cl.1, A216 WCB/LCC | 13Cr or 316/316L SS (stem, ball) | Part 2 (CS) |
| Moderate (Sour) | 0.05 – 0.1 | Up to 120°C | Duplex 2205 (UNS S31803) | 2205 stem + HVOF WC/Co seat coating | Part 3 (CRA) |
| High H₂S + Chlorides | 0.1 – 0.5 | Up to 150°C | Super Duplex 2507 (UNS S32750) | 2507 trim + Inconel 625 springs | Part 3 (CRA) |
| Severe / Hot Sour | > 0.1 | 150 – 232°C | Carbon Steel + Inconel 625 weld overlay (min. 3mm) or Solid Inconel 625 (UNS N06625) / Alloy 825 (UNS N08825) | Inconel 625 cladding on all wetted surfaces, stem journals, seat pockets | Part 3 (CRA) |
Critical Note: For carbon steel, NACE MR0175 mandates a maximum hardness of 22 HRC (Rockwell C) for all pressure‑containing forgings, castings, and weld seams — verified by 100% hardness testing.
3. Design Architecture — Trunnion Ball Valves for Sour Gas Pipelines
A properly engineered sour gas trunnion ball valve incorporates multiple fail‑safe features:
- Trunnion‑mounted ball design — Transfers line‑pressure thrust loads to upper/lower bearings, preventing stem side‑loading and ensuring smooth 90° actuation under differential pressures up to 6000+ psi.
- Double Block & Bleed (DBB) — Isolates both upstream and downstream ports simultaneously; a bleed valve vents cavity pressure to verify seal integrity without pipeline depressurization.
- Anti‑Explosive Decompression (AED) seals — Standard elastomers (NBR/EPDM) permeate and rupture during rapid gas decompression. AED‑rated FKM/HNBR or spring‑energized PTFE lip seals are mandatory for sour gas.
- Hard‑faced sealing surfaces — HVOF‑applied Tungsten Carbide (WC) or Chromium Carbide (CrC) coatings resist erosive wear from sand, scale, and condensate entrained in sour streams.
- Inconel 718 stem springs & anti‑blowout stem design — Prevents stem ejection and provides reliable fail‑closed / fail‑open spring action in emergency shutdown (ESD) systems.
4. Quality Assurance — Testing & Inspection for NACE MR0175 Certification
A NACE MR0175 nameplate is only valid when supported by rigorous, documented testing at every manufacturing stage:
| Test / Inspection | Scope | Acceptance Criteria |
|---|---|---|
| Hardness Testing (100%) | All pressure‑retaining parts (body, bonnet, ball, stem, bolting) | CS ≤ 22 HRC; Inconel 718 ≤ 35 HRC; duplex ≤ 28 HRC |
| NACE TM0284 HIC | Parent material heat per ASTM specification | No step‑cracking (CLR, CTR, CSR reported) |
| NACE TM0177 SSC (Method A or B) | Tensile / bent‑beam exposure in H₂S‑saturated brine | No cracks at 720h (for carbon steel) or as per Annex requirements |
| NDE — RT/UT | 100% on cast/forged bodies | API 6D / ASME B16.34 acceptance levels |
| NDE — PT/MT | 100% on weld overlays and machined seal pockets | No relevant indications |

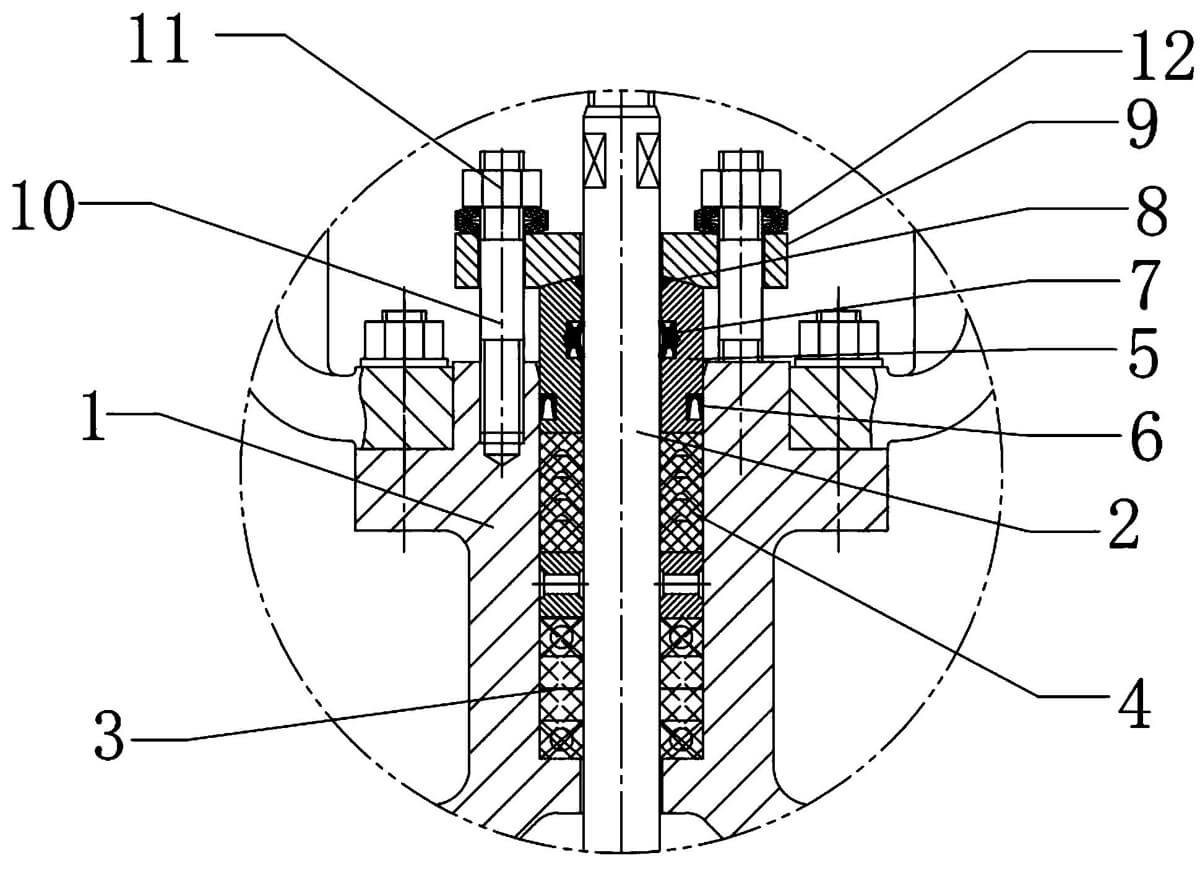

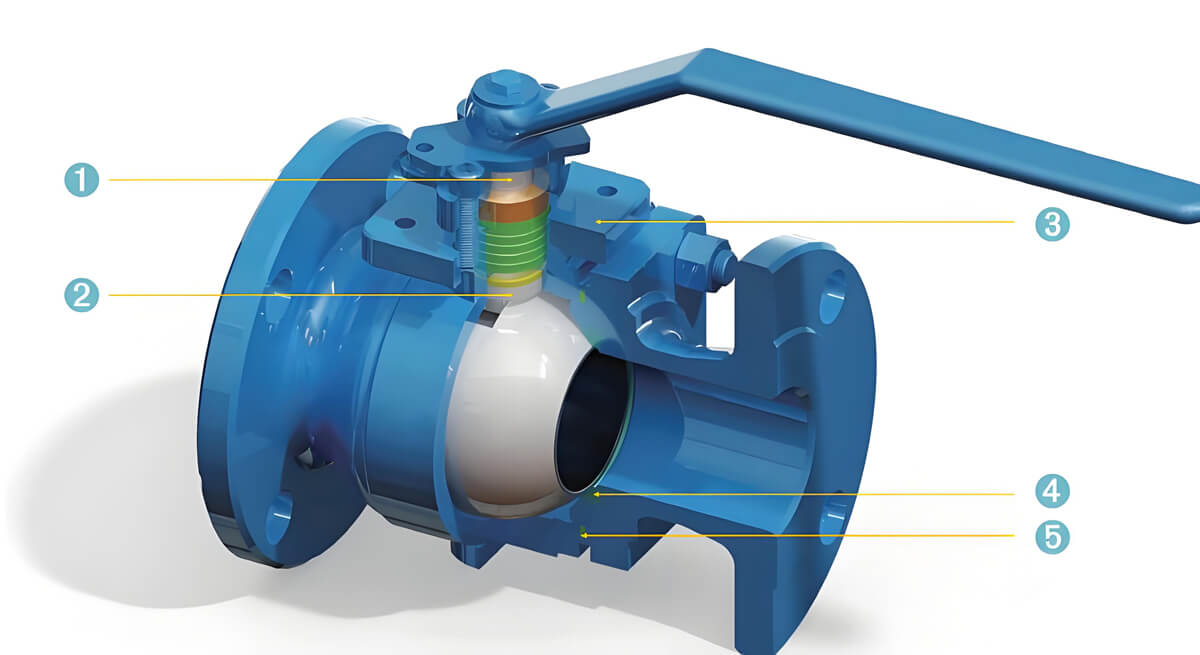

| Fugitive Emissions (ISO 15848‑1 Class AH or API 641) | Stem seal assembly with helium tracer gas | Leak rate ≤ 50 ppmv (helium) |
| Hydrostatic Shell & Seat Test | Per API 598 / ASME B16.34 | Zero leakage (seat) & no pressure drop (shell) |
All test records, material test reports (MTRs), and weld procedure qualification records (WPQRs) must be retained for full traceability — typically for 20+ years per operator requirements.
5. Comparative Summary — Standard Industrial vs. NACE MR0175 Sour Gas Ball Valves
| Feature | Standard Ball Valve | NACE MR0175 Sour Gas Ball Valve |
|---|---|---|
| Service Media | Sweet gas, water, hydrocarbons | Wet H₂S, CO₂, chlorides, sour brine |
| Hardness Limit | No restriction (often 25+ HRC) | ≤ 22 HRC (CS); ≤ 35 HRC (Inconel springs) |
| Seat & Stem Seals | Nitrile (NBR) / EPDM / PTFE | AED‑FKM, HNBR, or spring‑energized PTFE |
| Spring Material | 17‑4PH or AISI 302 | Inconel 718 / X‑750 (NACE‑qualified) |
| Internal Cladding | Optional / none | Inconel 625 overlay (≥3mm) on all wetted surfaces when required |
| Testing Scope | API 598 hydrostatic | API 598 + NACE TM0284 HIC + TM0177 SSC + ISO 15848‑1 |
| Traceability | Batch‑level | Heat‑level traceability with full MTR + WPQR documentation |
6. Sourcing NACE MR0175 Ball Valves — Why Partner with NSW VALVE COMPANY
Engineering a reliable sour gas flow‑control package demands a manufacturer with:
- Full material traceability from melt to finished product.
- Qualified welding procedures (WPS/PQR) for Inconel 625 overlay and buttering.
- In‑house NDE capabilities (RT, UT, PT, MT) and certified hardness testing.
- API 6D / ISO 9001 / PED / SIL‑3 certifications.
NSW VALVE COMPANY (nswvalve.com) designs and manufactures API 6D trunnion ball valves in Class 150 through Class 2500, fully compliant with NACE MR0175 / ISO 15156. We supply forged steel, duplex, super‑duplex, and Inconel‑cladded sour gas ball valves to upstream production, gas treatment, and offshore platforms worldwide — with documented 0‑leakage performance and fire‑safe (API 607 / ISO 10497) ratings.
