Geometric Deformation Detector

Geometric Deformation Detector

High precision geometric deformation detector – expert in pipeline/steel structure deformation measurement | certified by ISO12781

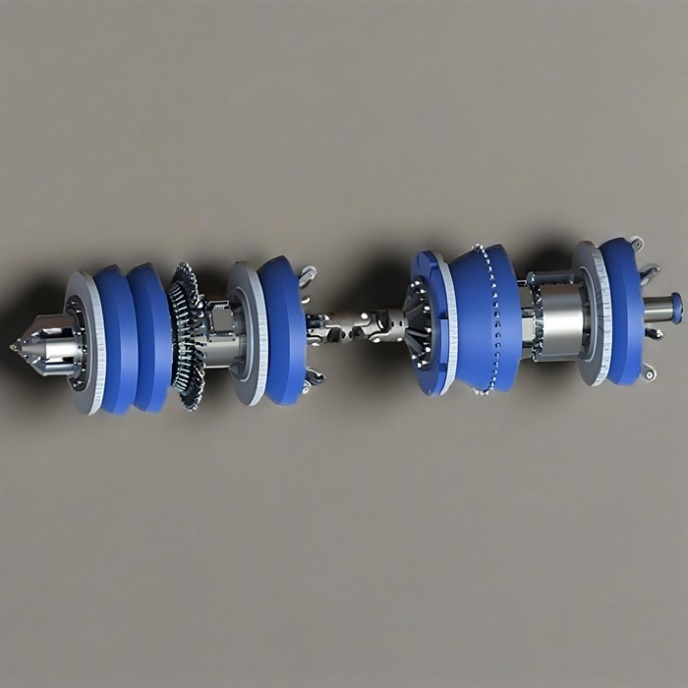

Geometric Deformation Detector is equipped with a support arm that changes with the inner diameter of the pipeline, which can collect data on the inner diameter change of the pipeline. After running, the data can be downloaded and recognized and calculated using interpretation and analysis software to achieve geometric deformation detection of the pipeline.

Specification range of Geometric Deformation Detector: 3 “~56″

Identification range of Geometric Deformation Detector:

·Changes in pipe diameter such as depression and ovality

·Pipeline characteristics such as circumferential welds, bends, and lengths

·Valves, tees, and other pipeline installations

Typical application scenarios:

Oil and gas pipelines: detecting ovality deformation during transportation (threshold>3% D)

Pressure vessels: measurement of local indentation caused by welding residual stress

Rail Transit: Analysis of the Circumferential Profile of Wheel Tread Wear

Yaisu Intelligent provides a geometric deformation detector that complies with the ISO12781 standard, capable of

measuring 0.02mm roundness error and 0.05mm/m flatness deviation, suitable for scenarios such as pipeline ovality

and steel structure welding deformation. Supports dual modes of laser scanning and contact probe, with a detection

speed of 15m/min, and has passed CMA/CNAS dual certification
