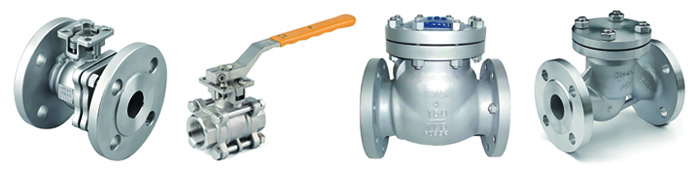

What is the Difference between A Check Valve and A Ball Valve

Introduction

Valves are the unsung heroes of industrial fluid systems, acting as critical control points for flow, pressure, and direction. For engineers, designers, and procurement specialists, selecting the wrong valve can lead to system inefficiency, costly downtime, or even catastrophic failure. Among the most common but frequently confused types are the ball valve and the check valve. While they may sometimes look similar, their purposes are fundamentally different. This guide will provide a clear, detailed comparison to empower you to make the perfect choice for your application.

What is a Ball Valve? A Versatile Flow Control Device

A ball valve is a quarter-turn rotary valve that uses a hollow, pivoting ball to control flow. When the valve handle is turned, the ball rotates. A hole (bore) through the ball’s center lines up with the flow path to allow media through or sits perpendicular to block it completely.

Design and Core Functionality

The primary function of a ball valve is to act as an on/off shut-off device. It provides reliable, bubble-tight sealing and is known for its excellent shut-off capability, minimal pressure drop, and quick operation.

Common Types of Ball Valves

• Stainless Steel Ball Valve: Ideal for corrosive environments, high-purity applications, and extreme temperatures. Commonly used in chemical, food & beverage, and pharmaceutical industries.

• Industrial Ball Valve: A broad category designed for heavy-duty use in oil & gas, water treatment, and power plants. They often feature reinforced construction and robust materials like carbon steel.

• Automated Ball Valves: Equipped with electric, pneumatic, or hydraulic actuators for remote control and integration into process automation systems.

• Threaded Ball Valve: Features NPT or BSPT threads for easy installation in smaller pipe systems without welding.

• Hydraulic Ball Valve: Specifically designed to handle high pressures found in hydraulic systems, often made from high-strength carbon or stainless steel.

What is a Check Valve? The Guardian of Flow Direction

A check valve, or non-return valve (NRV), is an automatic safety device designed to allow fluid to flow in only one direction. Its sole purpose is to prevent potentially damaging and inefficient reverse flow (backflow).

Design and Core Functionality

The check valve function is passive; it requires no manual or external control. Flow itself opens the valve. When flow stops or reverses, the internal mechanism (a disc, ball, or diaphragm) closes automatically via gravity, spring force, or backpressure.

Common Types of Check Valves

• Ball Check Valve: Uses a free-floating ball that seats against a seal to block reverse flow. Simple and effective for a variety of applications.

• Swing Check Valve: Features a hinged disc that swings open with flow and swings shut against the seal when flow reverses. Common in water and wastewater lines.

• Flanged Check Valve: Equipped with flanged ends for bolted connections to high-pressure or large-diameter piping systems, ensuring a strong, leak-proof seal.

• Threaded Check Valve: Similar to threaded ball valves, these are designed for easy screw-in installation into smaller systems.

Key Differences: Check Valve vs Ball Valve

This table summarizes the fundamental difference between a ball valve and a check valve.

*Throttling with a standard ball valve is not recommended as it can cause cavitation and seat erosion. A characterized or V-port ball valve is used for control.

The core difference between a ball valve and a check valve is control versus automation. A ball valve is about direct, intentional control of flow. A check valve is about automatic, passive protection of the system.

Applications and Use Cases: Choosing the Right Tool for the Job

Where to Use a Ball Valve

• Isolation: Shutting off a section of pipe for maintenance.

• Process Control: As a reliable on/off valve in any processing line.

• Distribution: Directing flow to different branches of a system.

• Safety: Emergency shut-off points for hazardous fluids.

Where to Use a Check Valve

• Pump Protection: Installed on the discharge side of a pump to prevent backflow and water hammer when the pump stops.

• Backflow Prevention: Ensuring contaminated water does not flow back into a clean water supply.

• System Integrity: Maintaining pressure in a line and preventing drainage (e.g., in HVAC systems).

• Media Separation: Keeping two different media from mixing in a common line.

Installation and Maintenance Best Practices

Check Valve Installation

Proper check valve installation is critical for it to function correctly.

1. Direction: The arrow on the valve body must point in the intended direction of flow.

2. Orientation: Many check valves (especially swing types) must be installed horizontally. Others, like ball check valves, may work in vertical lines with upward flow. Always consult the manufacturer’s specs.

3. Clearances: Ensure adequate straight pipe run before and after the valve to allow for proper disc swing and flow profile.

Maintenance Tips for Ball Valves

While generally low-maintenance, industrial ball valves benefit from periodic checks.

1. Cycling: Exercise valves periodically (open/close) to prevent seizing, especially in stagnant systems.

2. Leak Inspection: Check stem and seat seals for leaks.

3. Actuator Check: For automated ball valves, verify the actuator’s power source, limit switches, and torque settings.

4. Lubrication: Some valves require periodic lubrication of the stem via a grease fitting.

Conclusion: A Matter of Function, Not Preference

The choice between a ball valve and a check valve is not a matter of which is better, but which is right for the job. They are designed for fundamentally different purposes.

• Choose a Ball Valve when you need active, manual, or automated control to start or stop flow.

• Choose a Check Valve when you need passive, automatic protection to prevent reverse flow.

For complex systems, it’s common to see them work in tandem—for example, a ball valve for isolation and a check valve immediately downstream of a pump for protection. By understanding their distinct roles, you can specify valves with confidence, ensuring system efficiency, safety, and longevity.
