In modern industrial automation, motorized ball valves play an essential role in improving process efficiency and control accuracy. Also known as electric ball valves, these devices provide a reliable solution for fluid flow control across numerous applications. Below, we explore the key advantages of using motorized ball valves and explain why they are increasingly becoming the preferred valve solution in industrial settings.
What is a Motorized Ball Valve?

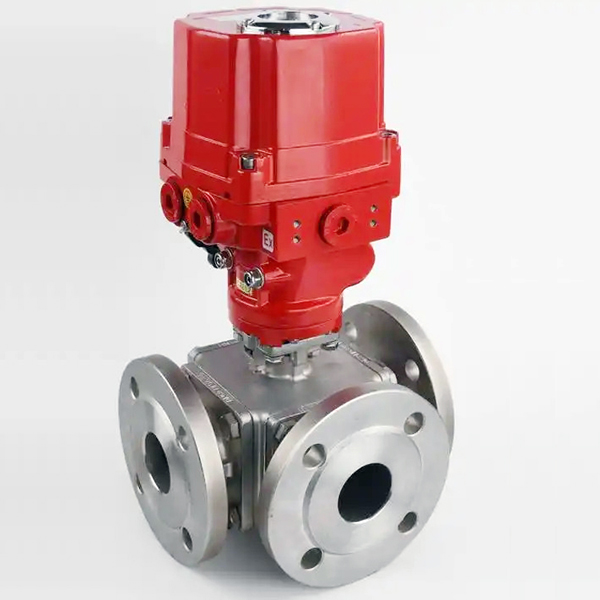

A Motorized Ball Valve is an automated valve that uses an electric actuator to rotate the ball inside the valve. This rotation either permits or restricts the flow of media, making it ideal for applications requiring shut-off or flow regulation. These valves are widely used in industrial automation systems where remote and precise control is necessary.
Structure of an Electric Ball Valve

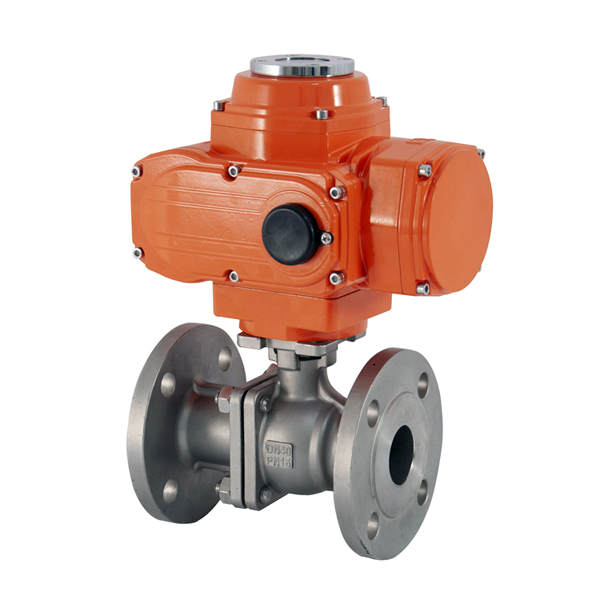

An electric ball valve consists of two main parts: the electric actuator and the ball valve assembly.
• Electric Actuator: Receives control signals and drives an electric motor to produce rotational movement.
• Ball Valve Assembly: Includes the valve body, ball, seat, and stem. The valve body forms the outer shell with an internal flow channel. The ball serves as the closing element, rotating 90 degrees to open or close the flow path. The valve seat acts as a sealing gasket to prevent leakage when the valve is closed.
How Does a Motorized Ball Valve Work?
The operating principle of a motorized ball valve is straightforward. When the actuator receives a signal from a control system, it activates the motor. The motor’s rotation is transmitted through a gear mechanism (such as a worm gear) to turn the ball.
• When the ball’s bore aligns with the pipeline, fluid flows freely.
• When rotated 90 degrees, the ball blocks the flow.
This simple yet effective mechanism allows for precise open-close control and flow regulation.
Overview of Industrial Applications
Electric ball valves are highly versatile and can be used in a wide range of industries and environments. They are suitable for high/low temperature, high/low pressure, corrosive fluids, viscous media, and more.
For example:
• Metal-seated motorized ball valves are ideal for high-temperature steam lines.
• Corrosion-resistant models are used for chemical or acidic fluid handling.
These valves are commonly applied in industries such as oil and gas, water treatment, chemical processing, HVAC, and power generation.
Benefit 1: Enhanced Control
Precision Flow Control
Motorized ball valves allow highly accurate flow regulation. The ball can be rotated between 0 and 90 degrees, offering fine control over media passage. Key features include:
• High precision: position feedback accuracy within ±0.5°
• Fast response: full travel in under 10 seconds
• Support for automation protocols: 4–20mA, Modbus
These capabilities make electric ball valves suitable for precise flow control in processes such as petrochemical refining and water treatment.
Automated Operations with Electric Control Valves
Motorized ball valves integrate seamlessly with automation systems including PLC, DCS, and SCADA. They can operate based on preset programs or real-time signals, reducing the need for manual intervention and enabling fully automated industrial processes.
Benefit 2: Improved Safety
Reduced Manual Handling Risks
With electric ball valves, operators can control flow remotely from a control room. This minimizes physical interaction with valves located in hazardous or hard-to-reach areas, enhancing operator safety and reducing human error.
Automatic Shut-Off Mechanisms
Many electric ball valves are equipped with spring-return mechanisms. In case of power failure, the spring automatically closes the valve, ensuring fail-safe operation and preventing potential accidents or system damage.
Common Control Methods:
• Manual override
• Open-loop control
• Timed opening/closing
• Signal control (discrete, analog, or fieldbus signals)
Benefit 3: Energy Efficiency
Power Consumption of Electric Ball Valves
Typical power ratings for electric ball valves range from 25W to 22KW. Selecting the right valve based on operational needs can lead to significant energy savings.
Factors that increase energy use include:
• High switching frequency
• Spring-return mechanisms
• Leakage requiring constant compensation
How to Improve Energy Efficiency:
• Choose low-power models compliant with ERP standards
• Implement smart control strategies (e.g., sensor-based activation)
• Perform regular maintenance
Example: A building using 15W valves for HVAC reported annual electricity costs of only $18 per valve.
Programmable Ball Valve Features
Many modern motorized ball valves support programmability, allowing users to set operating schedules or conditions that further optimize energy usage.
Benefit 4: Durability and Reliability
Construction Materials: Stainless Steel Ball Valve
Electric Ball Valves are known for their robust construction. Common materials include stainless steel, cast steel, and alloy steel, which offer excellent corrosion and wear resistance.
Key durability features:
• Direct connection between actuator and valve reduces wear
• Enhanced sealing materials (e.g., graphite-filled PTFE)
• Capable of over 1 million cycles with minimal maintenance
Comparison with Other Valve Types
• Vs. Electric Butterfly Valves:
Better sealing and lower pressure loss
Higher cost and less suitable for very large diameters
• Vs. Electric Gate Valves:
Faster operation and better flow regulation
More susceptible to seal wear with frequent use
• Vs. Manual Ball Valves:
Higher automation and remote-control support
Higher upfront cost but lower long-term operational risk
Benefit 5: Versatility in Applications
Usage of Motorized Ball Valves in Various Industries
Electric ball valves are used in a wide variety of sectors:
• Oil & Gas: Pipeline transport, tank control, refining
• Water Treatment: Flow regulation, dosing, filtration control
• Power Generation: Control of water/steam in power stations
• Chemical & Pharmaceutical: Handling corrosive or sterile fluids
• HVAC & Building Automation: Temperature and flow control
Conclusion
Motorized Ball Valves provide industrial users with improved control, safety, energy savings, durability, and application flexibility. Whether you are designing a new automated system or upgrading an existing one, electric ball valves provide a reliable and efficient solution for fluid control challenges.
