A Steam Globe Valve, also known as a Bellows Seal Globe Valve, is an industrial valve designed to shut off, distribute, and regulate the flow of medium by applying pressure via the valve stem to create a tight seal between the disc and the seat. It is a critical control component primarily used in high-temperature steam pipeline systems within industries like oil and gas, chemical, power generation, and metallurgy.
Understanding the Steam Globe Valve and Its Critical Role
This valve features a double bellows welded to the stem structure, achieving zero stem leakage. Its design optimizes the seat position and force direction, allowing medium pressure to assist sealing when closing, thereby reducing leakage risk. The plug-type disc has a flat or conical sealing surface, complemented by multi-layer sealing structures like packing rings and flexible graphite packing for enhanced leak prevention. Constructed from materials like carbon steel and stainless steel, it supports various end connections (flanged, threaded, welded) and actuation methods (manual, gear, pneumatic). Installation requires ensuring medium flow direction matches the valve body indicator; valves on main pipelines must undergo pre-installation strength and tightness tests.
Core Function: Precise Flow Control for Steam Systems
The closing member of a Steam Globe Valve is a plug-shaped disc. Its sealing surface is flat or conical, and the disc moves linearly along the fluid’s centerline. By controlling the opening degree of the globe valve, precise regulation of steam flow rate is achieved.
Why Steam Requires a Specialized Type of Globe Valve
Steam service demands robust valves due to high temperatures and pressures. Key advantages include:
1. Rational Structure: Reliable sealing, excellent performance, and aesthetic design.
2. Durable Sealing Surface: Sealing surfaces are often hard-faced with cobalt-based alloys, offering superior wear, corrosion, and friction resistance for a long service life.
3. Treated Valve Stem: The stem undergoes quenching, tempering, and nitriding for excellent corrosion and abrasion resistance.
4. Double Seal: Enhanced reliability with zero leakage, often combining bellows and packing.
5. Stem Position Indicator: Provides visual indication of valve open/close status.
6. Customizable Materials: Components, flange, and weld-end dimensions can be selected based on specific working conditions to meet diverse project needs.
Classification of Steam Globe Valves

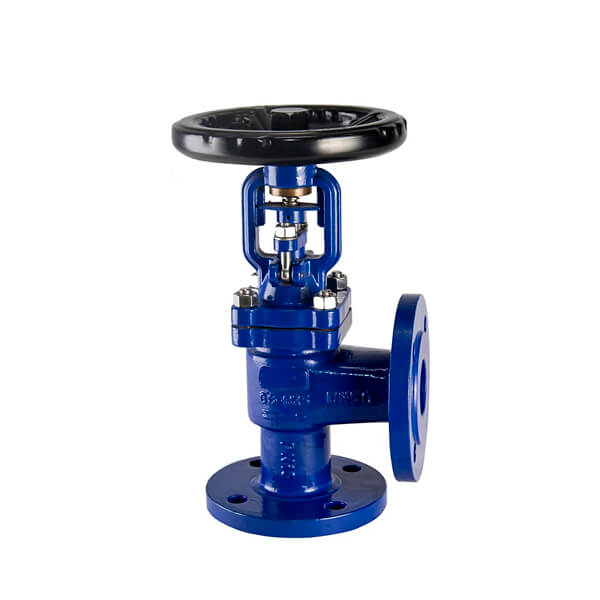

• By Structure: Angle Bellows Globe Valve, Y-Pattern Bellows Globe Valve, Straight-through Globe Valve.
• By Material: Ductile Iron Bellows Globe Valve, Cast Steel Bellows Globe Valve, Stainless Steel Bellows Globe Valve, Forged Steel Globe Valve.
Deconstructing the Steam Globe Valve: Key Components and Structure
The Distinctive Z-Pattern Body Design
The Z-shaped (or oblique) flow path is a hallmark of many globe valves.
• Flow Dynamics: This design optimizes flow resistance, reduces turbulence, and provides more stable flow control compared to straight-through designs, though it creates a higher pressure drop.
• Structural Strength: The body shape contributes to mechanical stability, capable of withstanding high pipeline stresses.
• Installation & Maintenance: The design often allows for more compact installation in specific orientations and can facilitate easier maintenance access.
Key Internal Parts: Disc, Stem, Seat, and Bonnet
• Body: The main pressure-containing component.
• Disc (or Plug): The primary moving component that opens, closes, or restricts the flow path. It mates with the seat.
• Stem: Transmits motion from the actuator (e.g., handwheel) to the disc.
• Seat: The stationary ring against which the disc seals to stop flow.
• Bonnet: The assembly attached to the valve body, containing the stem packing and guiding the stem. In steam service, it’s often a bolted-bonnet for high-pressure integrity.
The Importance of Robust Gaskets and Stem Packing
• Gaskets: Seal the joint between the valve body and bonnet, crucial for preventing leaks under high-temperature steam conditions. Materials like spiral-wound graphite are common.
• Stem Packing: Seals the area where the stem exits the bonnet. For standard designs, high-temperature packing like flexible graphite is used. In bellows-sealed valves, the metal bellows acts as the primary stem seal, providing a leak-tight barrier, with packing as a secondary backup.
Primary Functions and Essential Applications of Steam Globe Valves
Function 1: Isolation and Shut-Off of Steam Flow
The primary role is to provide a tight, leak-proof shut-off for steam isolation during maintenance or to section off parts of a system.
Function 2: Throttling and Regulating Steam Pressure/Flow Rate
Due to the linear motion of the disc and the seat design, globe valves excel at precisely throttling flow and regulating steam pressure or flow rates, unlike gate valves.
Common Applications in Power Plants, HVAC, and Industrial Processes
They are vital in steam lines for turbines, heat exchangers, boilers, industrial process equipment, and large-building HVAC heating systems where flow control and reliable shut-off are paramount.
Key Advantages of Using a Purpose-Built Steam Globe Valve
Superior Durability Under High-Temperature and High-Pressure Conditions
Constructed from robust materials (forged/cast steel) designed to withstand the thermal and mechanical stresses of steam service.
Excellent Shut-Off Capability Preventing Steam Leakage
The design, especially with bellows seals, ensures bubble-tight shut-off, crucial for safety and energy efficiency by preventing steam losses.
Precise Flow Control for Efficient System Operation
The controlled movement of the disc allows for fine adjustments in flow, leading to optimized process control and system efficiency.
Governing Standards: API 602 and BS 1873 for Globe Valves
Understanding API 602 Globe Valve Standards for Forged Steel Valves
API 602 specifies requirements for compact, forged steel gate, globe, and check valves primarily for petroleum and natural gas industries. It ensures high quality, strength, and safety for demanding services, including steam.
Understanding BS 1873 Globe Valve Standards for Cast Steel Valves
BS 1873 specifies requirements for steel globe and check valves (flanged and butt-welding ends) made from cast or forged material. It covers dimensions, materials, pressure-temperature ratings, and testing.
How These Standards Ensure Quality, Safety, and Interoperability
Adherence to these standards guarantees that valves meet strict criteria for design, material quality, manufacturing, and testing (e.g., shell tests, seat tests). This ensures safety, reliability, and interchangeability between products from different manufacturers.
Steam Globe Valve vs. Standard Globe Valve: What’s the Difference?
Material Differences: Carbon Steel vs. Brass/Bronze
Standard globe valves for water or air often use brass or bronze. Steam globe valves are exclusively made from carbon steel, stainless steel, or other alloys suitable for high temperatures.
Design Pressure and Temperature Ratings
Steam globe valves are rated for significantly higher pressures and temperatures (e.g., Class 600, 900+; temperatures exceeding 400°C) compared to standard valves.
Construction Features: Reinforced Seating and Sturdier Stems
They feature enhanced construction like sturdier stems, hardened trim (disc/seat), robust bonnet joints, and often include features like bellows seals to handle the demanding nature of steam.
Other Common Valve Types Used on Steam Piping Systems
Gate Valves: For Isolation Without Throttling
Ideal for full open/full close isolation with minimal pressure drop but should not be used for throttling as it can cause seat and disc erosion.
Ball Valves: Quick Shut-Off but Limited Throttling
Offer excellent shut-off and fast operation. While some characterized ball valves can throttle, globe valves generally provide superior control precision for steam. Standard soft-seated ball valves may have temperature limitations.
Steam Traps: Removing Condensate, Not Controlling Flow
Used automatically to drain condensate and non-condensable gases from steam systems without allowing live steam to escape. Their function is distinct from flow control valves.
Comparative Analysis: How Other Valves Stack Up Against Steam Globe Valves
Globe Valve vs. Gate Valve: Throttling Ability vs. Low Pressure Drop
Choose a globe valve for frequent throttling/regulation. Choose a gate valve for full-open isolation where minimal pressure loss is critical, and throttling is not required.
Globe Valve vs. Ball Valve: Control Precision vs. Speed and Tightness
Choose a globe valve for precise flow control. Choose a ball valve for quick, quarter-turn on/off operation where excellent shut-off is needed, but fine throttling is not the primary concern.
Choosing the Right Valve: A Summary for Steam Service
The choice depends on the application’s primary need: precise regulation (Globe Valve), low-pressure-drop isolation (Gate Valve), or fast, tight shut-off (Ball Valve, if suitable for temperature/pressure).
Conclusion: Selecting the Optimal Valve for Your Steam Application
Selecting the correct steam globe valve is critical for system safety, efficiency, and longevity. Key considerations include the specific function (isolation vs. throttling), pressure-temperature ratings, material compatibility with steam quality, required leakage standards (favoring bellows seals for zero emission), and adherence to relevant industry standards like API 602 or BS 1873. By understanding the unique design, components, and advantages of purpose-built steam globe valves, engineers can make informed decisions to ensure reliable and optimal performance in their steam systems.
