Shut Down Valve Symbols are critical tools in engineering diagrams, offering a universal language for professionals to interpret system designs. Among these symbols, the shut down valve (SDV) symbol holds unique importance in industrial safety and process control. In this article, we explore what valve symbols are, the specifics of shut down valve symbols, their applications, and how to use them correctly—while integrating examples of other valve symbols for context.
—
What Is a Valve Symbol
Valve symbols are standardized graphical representations used in Piping and Instrumentation Diagrams (P&IDs) to depict the type, function, and operation of valves within a system. These symbols streamline communication across engineering teams, ensuring consistency in design, maintenance, and safety protocols. Common elements include:
- Basic shapes (circles, triangles, diamonds) to indicate valve types.
- Lines and arrows to show flow direction or actuation methods.
- Additional markings (e.g., “FC” for fail-closed, “FO” for fail-open).
Examples of other valve symbols:
- Ball valve: A circle with a perpendicular line.
- Gate valve: A wedge-shaped symbol inside a rectangle.
- Check valve: A triangle pointing in the flow direction.
—

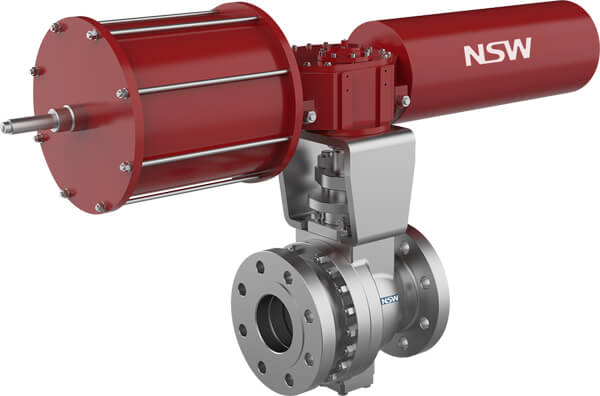

What Is a Shut Down Valve (SDV)
A shut down valve (SDV) is a safety-critical valve designed to isolate process flow during emergencies, such as leaks, overpressure, or equipment failure. These valves are often automated and linked to safety instrumented systems (SIS) for rapid response. Industries like oil and gas, chemical plants, and power generation rely on SDVs to prevent accidents and protect personnel.
—

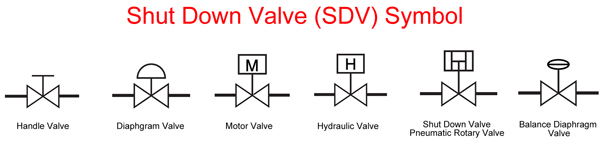

Shut Down Valve Symbol: Key Features
The SDV symbol builds on standard valve symbols but includes **specific identifiers for its emergency function**:
1. Basic Symbol: A circle (representing a rotary valve) or a rectangle (linear valve).
2. Actuation Marker: A diagonal arrow or lightning bolt to denote automatic actuation.
3. Safety Tag: Often labeled “SDV” or accompanied by a red color code in digital diagrams.
4. Fail-Safe Mode: Symbols like “FC” (fail-closed) or “FO” (fail-open) may appear beside it.
For example, an SDV symbol in a P&ID might combine a ball valve symbol (circle with a line) with an actuation arrow and an “SDV” label.
—
Applications and Importance of Shut Down Valve Symbols
1. Safety Systems in Hazardous Environments
SDV symbols are vital in industries dealing with flammable or toxic materials. For instance, on an offshore oil rig, an SDV symbol on a P&ID indicates valves that automatically close to prevent spills during a gas leak.
2. Compliance with Standards
Using standardized SDV symbols ensures compliance with international norms like ISA-5.1 or ISO 14617, reducing errors during audits or system upgrades.
3. Enhanced Communication
Clear symbols eliminate ambiguity. A misplaced SDV symbol could lead to delayed shutdowns, risking lives and equipment.
—
How to Use Shut Down Valve Symbols Correctly
To avoid misinterpretation:
1. Follow Industry Standards: Adhere to ISA or ISO guidelines for symbol design.
2. Label Clearly: Always include “SDV” tags and fail-safe modes.
3. Document in Legends: Provide a diagram legend explaining all symbols.
4. Train Teams: Ensure engineers and technicians understand symbol conventions.
—
Comparing SDV Symbols to Other Valve Symbols
To highlight differences:
- Relief Valve Symbol: A triangle with a horizontal line, used for pressure release.
- Control Valve Symbol: A circle with a vertical line, often labeled “CV.”
- Butterfly Valve Symbol: Two curved lines intersecting a circle.
Unlike these, the SDV symbol prioritizes rapid isolation, combining actuation markers with safety labels.
—
Conclusion
Shut down valve symbols are more than just drawings—they are lifelines in industrial safety. By understanding their design, applications, and proper usage, engineers can ensure systems operate safely and efficiently. Whether drafting a P&ID or troubleshooting a plant, accuracy in valve symbols like the SDV is non-negotiable.
By integrating these practices and recognizing the distinctions between SDV symbols and other valve types (e.g., gate, ball, or check valves), professionals contribute to safer, more reliable industrial operations worldwide.
