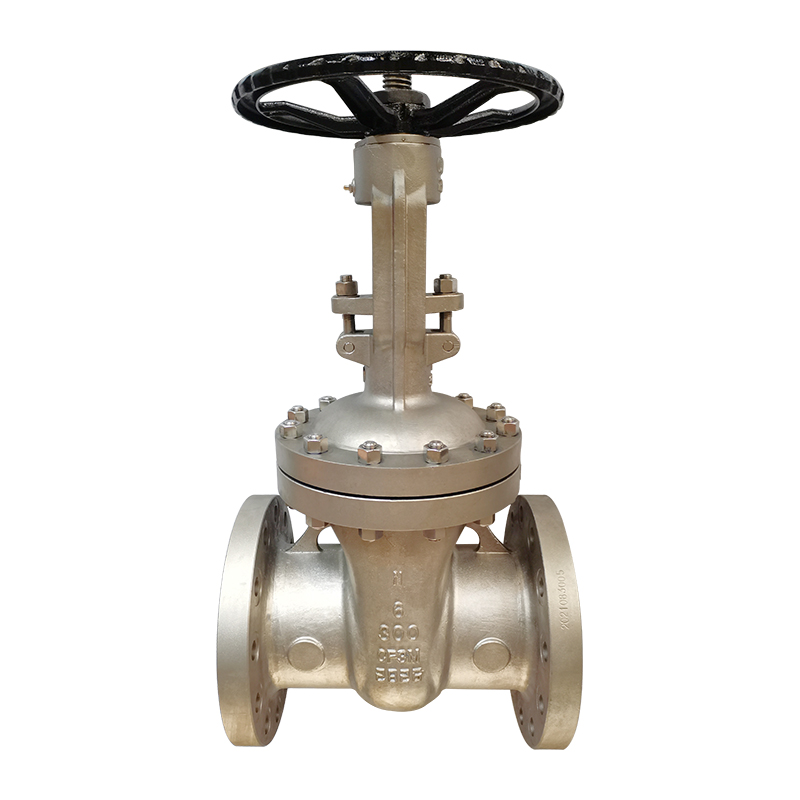

Newsway Valve company produce stainless steel gate valves in API 600 Standard, the valves material can be stainless steel, duplex stainless steel, super duplex stainless steel (CF8, CF8M, CF3, CF8M, 4A, 5A, 6A). our gate valves are in zero leakage.
API 600 Stainless Steel Gate Valve are divided into rising stem gate valves and non-rising stem gate, wedge gate valve and wedge gate valve. The open-close part of wedge gate valve is disc, so it can only be fully open and close and can’t be used to adjust and throttle. Wedge gate valve, which are widely used in electric power, petroleum, chemical industry, metallurgy, mining, sewage treatment and other industrial fields, especially in the power plant ash play a huge role in coal preparation equipment.
PRODUCT RANGE:
Sizes: NPS 2 to NPS 48
Pressure Range: Class 150 to Class 2500
Temperature :-20℃ ~500℃
MATERIALS:
Forged ( F304, F304L, F316, F316L)
Casting (A351 CF8, CF8M, CF3, CF3M, A995 4A, A995 5A, A995 6A), Alloy 20, Monel, Inconel, Hastelloy
STANDARD
| Design & manufacture | API600 / ASME B16.34 |
| Face-to-face | API 6D, ASME B16.10 |
| End Connection | Flange Ends to ASME B16.5, ASME B16.47, MSS SP-44 (NPS 22 Only) |
| - Socket Weld Ends to ASME B16.11 | |
| - Butt Weld Ends to ASME B16.25 | |
| - Screwed Ends to ANSI/ASME B1.20.1 | |
| Test & inspection | API 598 |
| Also available per | NACE MR-0175, NACE MR-0103, ISO 15848 |
| Other | PMI, UT, RT, PT, MT |
Design Features:
1.Flexible wedge / Solid wedge
2.Rising stem/non rising stem
3.Bolted bonnet
4.Anti blow-out stem
5.Cover connect with bolt / Pressure Seal Bonnet
6.Zero leakage
